Rigid Glass Marine Solar Panels

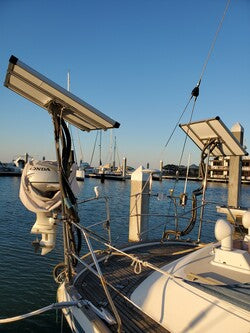

The ideal marine solar panel must be highly efficient (maximum output per surface area) and robust enough to withstand the harsh marine environment. We offer various sizes and types of solar panels to meet the unique needs of our customers. For the cruising boat with modest power requirements, we recommend our 110 - 140 watt panels and for the cruising boat with greater power requirements we recommend our 140 - 290 watt panels. These panels are excellent for mounting on a pole, a rigid deck top or a bimini frame.
Our new 290 watt rectangular panel (57 x 36 inches) is ideal for mounting on dinghy davits, arch or rigid deck. All CMP (Custom Marine Products) solar panels are high quality, high output Class A+ marine grade and backed with a 5 year manufacturers and CMP warranty.

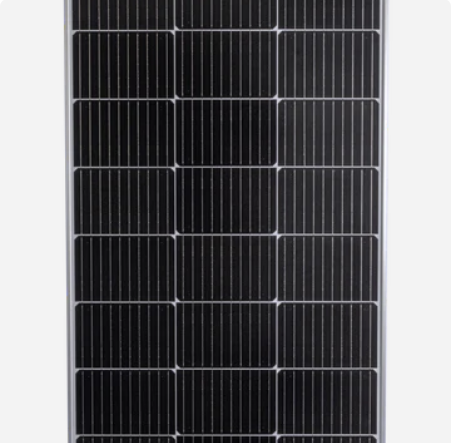

Our rigid glass monocrystalline solar panels using premium SunPower solar cells and PERC solar cells are some of the most efficient panels available at up to 24% efficiency. These marine grade solar panels will perform extremely well in both full and partial sun as well as at low sun angles in the morning and late afternoon. They are built to withstand the harsh marine environment specifically for boats. When integrated with our Tracer BN, Xtra-N MPPT, DuoRacer of Victron controller, this combination provides the highest output per sq. inch of most any system available.
See All Marine Solar Panels We Offer and Their Specs
Marine solar panels with A+ grade Sunpower Maxeon 24.4% efficient solar cells
HJT/Perc solar cell marine solar panels
110 Watt Rail Mounted Adjustable Solar Panel With Carbon Fiber Backing$1,601.00$1,601.00
110 Watt DropLeaf Solar Panel$918.00$918.00
240 Watt Rigid Marine Solar Panel - Sunpower A+ Grade 24.4% Efficient Cells$1,129.00$1,129.00
280 Watt Rigid Solar Panel - Sunpower A+ Grade 24.4% Efficient Cells$1,299.00$1,299.00

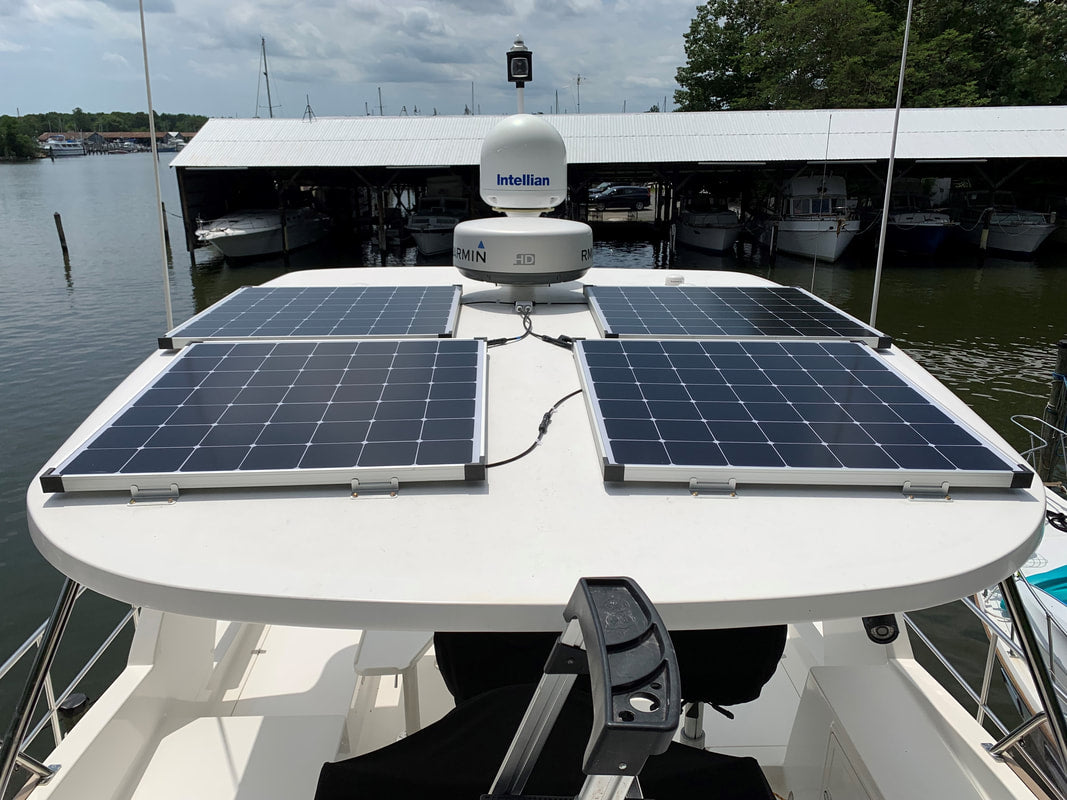

175 Watt Rigid Solar Panel - PERC Cells$579.00$579.00
190 Watt Rigid Solar Panel - PERC Cells$689.00$689.00
160 Watt Marine Solar Panel - Square$699.00$699.00
420 Watt Rigid Solar Panel - HJT Cells$1,399.00$1,399.00
140 Watt DropLeaf Solar Panel$1,749.00$1,749.00
160 Watt DropLeaf Solar Panel$1,828.00$1,828.00
110 Watt gLeaf Solar Panel$1,499.00$1,499.00
140 Watt gLeaf Solar Panel$1,664.00$1,664.00
160 Watt gLeaf Solar Panel$1,709.00$1,709.00-
175 Watt gLeaf Solar Panel$1,984.00$1,984.00
See All Solar Panel Types, Dimensions, and Specifications
All Solar Panel Specs
Specifications and dimensions for our entire catalog of marine solar panels.
Marine Solar Panel Grid - SunPower A+ Grade Efficient Cells
Specifications and dimensions for our entire catalog of SunPower marine solar panels.
Marine Solar Panel Grid - HJT and PERC Cells
Specifications and dimensions for our entire catalog of Perc and HJT marine solar panels.
High Performance CMP Marine Solar Panel Specifications Summary SunPower Maxeon Series (A+ Grade)
Our SunPower Maxeon Series solar panels are made with SunPower Maxeon Gen III solar cells which have the highest energy yield (power output) of any solar cell commercially available. SunPower Maxeon cell technology uses a back contact design which maximizes the sunlight energy available to each solar cell and enables a sunlight to electric conversion efficiency of up to 24%.
PERC - HJT Series (~25% less cost, ~1.5% less efficient)
PERC (Passivated Emitter and Rear Contact) cells are about 1.5% less efficient than Sunpower cells and cost about 25% less. These modified conventional cells produce 6 to 12 percent more energy than conventional monocrystalline solar cells. Premium PERC solar cells have an extra layer within the back side of the cell. This allows some of the sun’s rays to reflect back into the solar cell, increasing the amount of energy produced resulting in a conversion efficiency of up to 22.5%. This enables us to provide the same high quality at a lower price per watt.
Our CMPower 2.0 Smartphone App
What our Smartphone App Shows You.
Battery State of Charge %
Battery Voltage
Battery Amp Hours Remaining
Status: Standby, Charging. Discharging.
Condition: Perfect, Very Good, Good, Fair. Poor
Fault Codes: Over Voltage, Over Amp.
Number of Charge Cycles
Battery Temperature
Battery Cell Group Voltages
Time to Fully Charged
Solar System Design and Installation
We have put together a collection of helpful information for our customers on everything to help you design you perfect system and installation instructions.
Premium Marine Solar Panels/Systems and Lithium Iron Batteries
Improve your cruising experience with the highest efficiency solar panels available.
Shipping
Products ship day after payment domestically. Free shipping on orders over $250 applies to Lower 48 US states only. International takes longer. We do not add tariff charges. Call for pricing.
Custom Designs
Our engineers will work with you to design a solar system specific to your needs including Lithium Batteries if you like. (Batteries are 10% off w/ solar system purchase).
