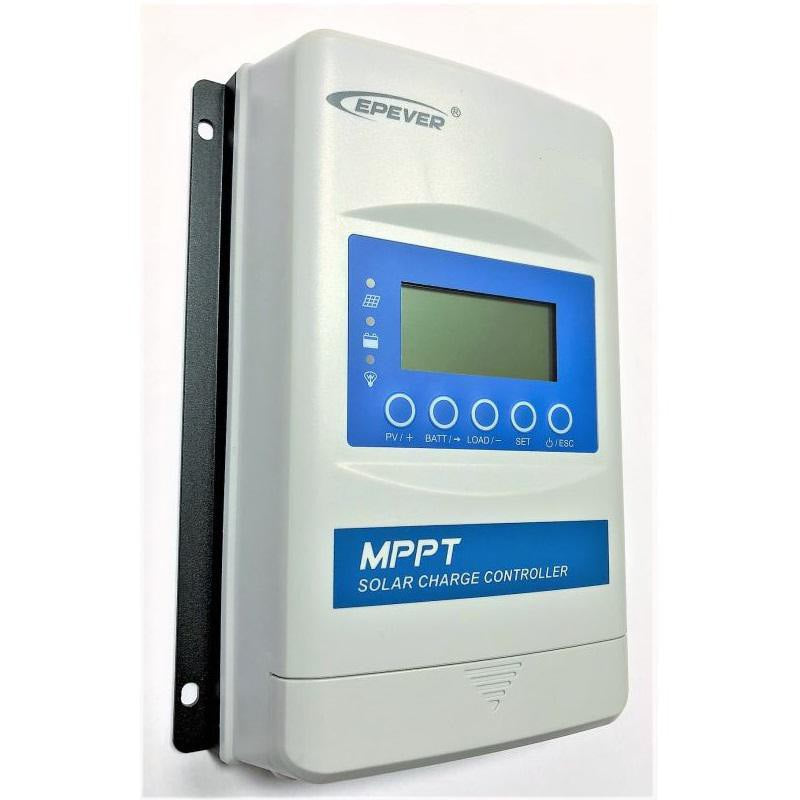

Xtra-N Marine Series Controllers

The Xtra-N marine series controllers are EP Solar’s second generation of MPPT controllers. They have rapid MPP (Maximum Power Point) calculation capability to achieve the maximum output of a solar array.  At 99.5% efficiency they are one of the most energy efficient controllers available which means they will convert the maximum amount of solar energy to battery charging power.

With the adaptive three-stage charging mode based on a digital control circuit, XTRA-N series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damage to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

The Xtra-N series controllers include a built in display providing the same information as the MT50 remote display although the MT50 is an optional accessory.  The Xtra-N is designed to manageLithium ion and LiFePo4batteries as well as the standard flooded, AGM and sealed batteries.  The Xtra-N can be programmed from the built in display, the MT50 remote meter, a Bluetooth smart phone app or a computer connected via special cable.

Four Models

Xtra1210N 10A

Xtra2210N 20A

Xtra3210N 30A

Xtra4210N 40A

Features：

•  Full-load operation without any drop in capacity within the range of working environment temperature
•  Dustproof and waterproof design with IP32★class
•  The communication port contains a professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
•  Advanced MPPT technology, with efficiency no less than 99.5%
•  Ultra-fast tracking speed and guaranteed tracking efficiency
•  Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
•  High quality components, maximizing system performance, with maximum conversion efficiency of 98%
•  Accurate recognition and tracking of multiple-peaks maximum power point
•  Automatic limitation of the charging power and current
•  Wide MPP operating voltage range
•  Compatible with lead-acid, AGM, sealed, lithium-ion and LiFePo4 batteries

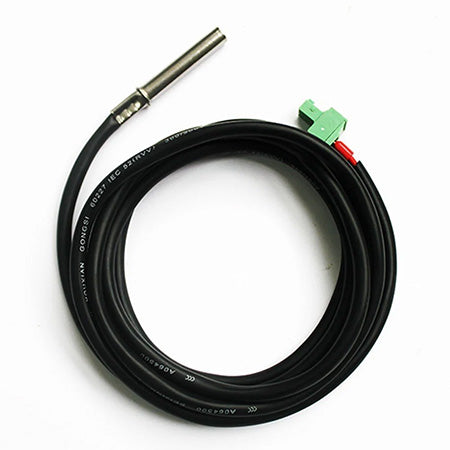

•  Battery temperature compensation function
•  Real-time energy statistics function
•  Overheating power reduction function
•  With RS-485 communication bus interface and Modbus communication protocol
•  Monitor and set the parameters via built in display, MT50 meter, mobile phone APP or PC software
•  Automatically detect 12 and 24 volt systems
•  Dustproof and water resistant
•  Extensive electronic protection

Electronic protection

• PV short circuit
• PV over current
• PV reverse polarity
• Battery over voltage
• Battery over discharge
• Battery reverse polarity
• Load overload
• Load short circuit
• Battery overheating
• Controller overheating
• Lithium Battery Low Temperature
• Night Reverse Charging
