130 Watt Shade Tolerant Flexible Marine Solar Panel - Sunpower A+ Grade 24.4% Efficient Cells

130 Watt Shade Tolerant Flexible Marine Solar Panel - Sunpower A+ Grade 24.4% Efficient Cells

$639.00 USD
$639.00 USD
Sale Sold out
Shipping calculated at checkout.

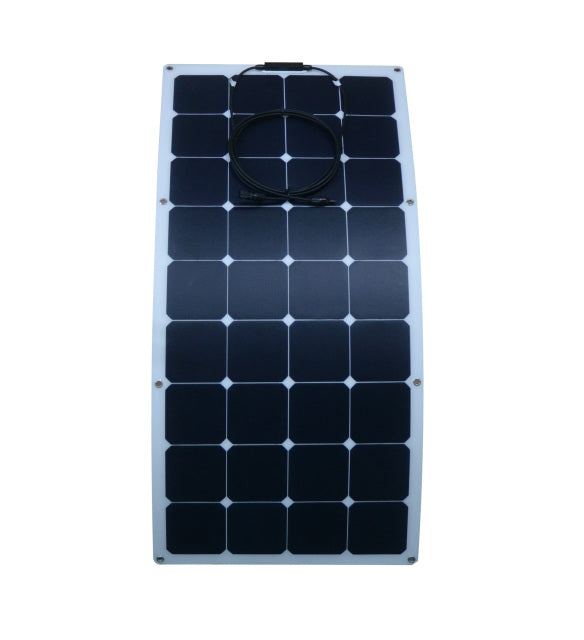

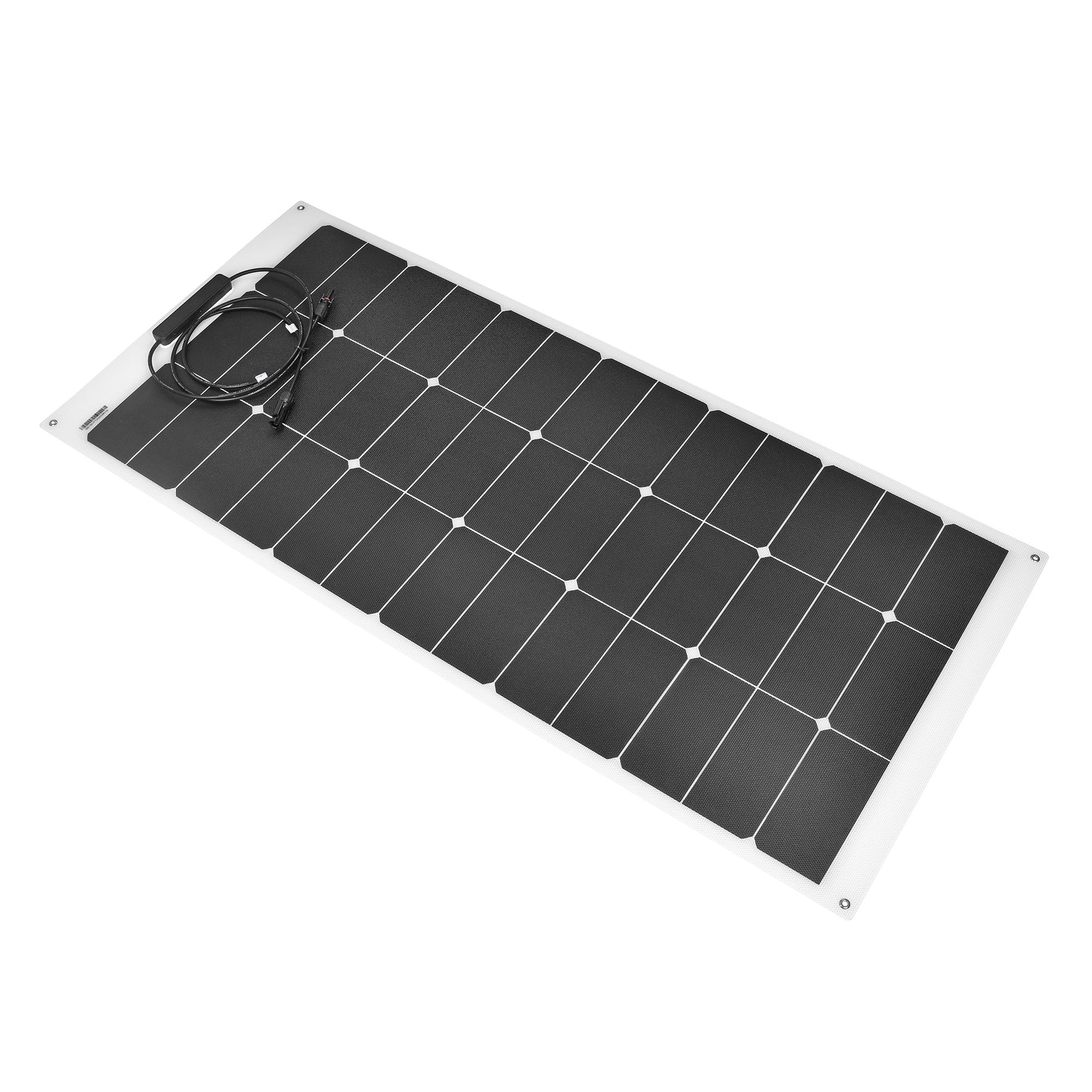

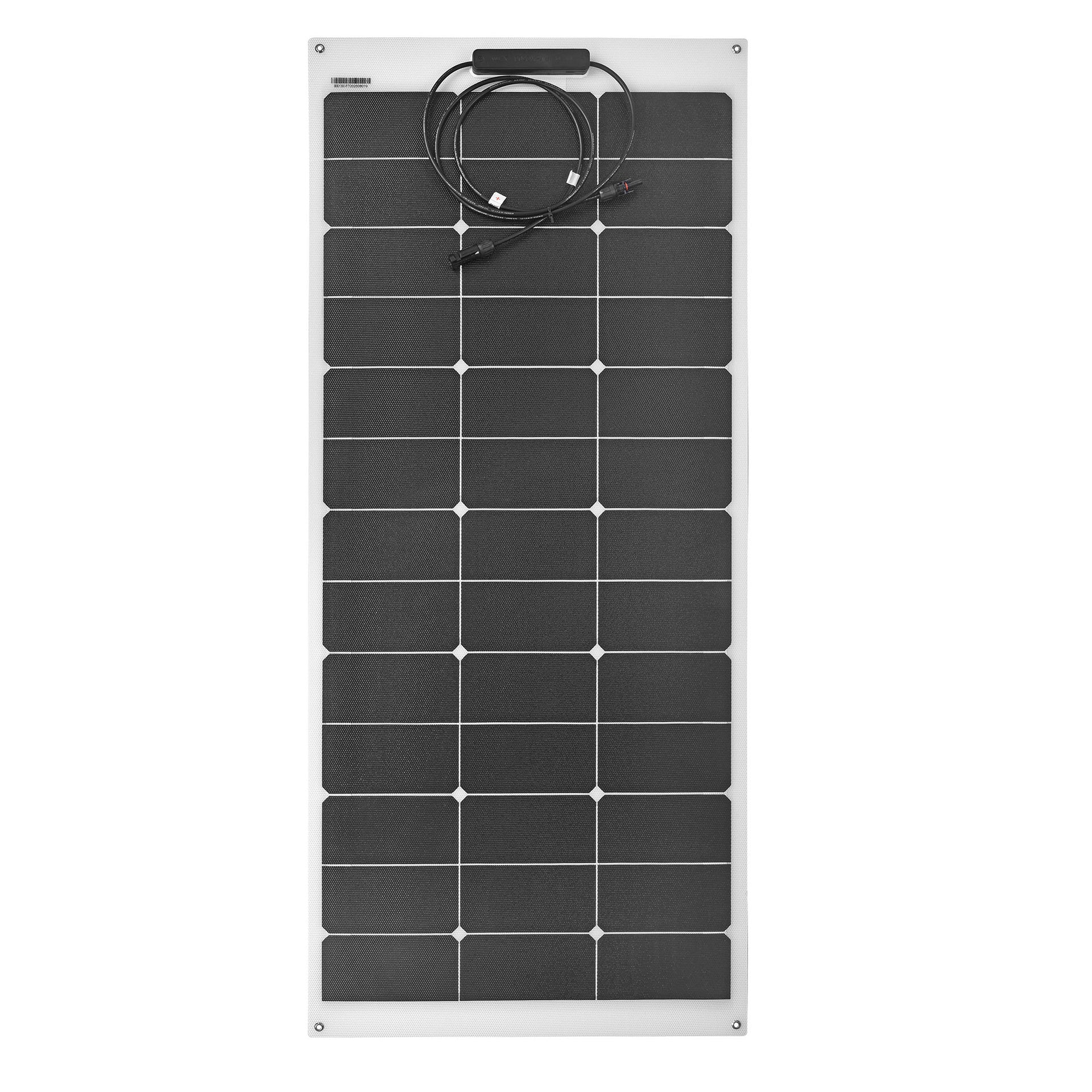

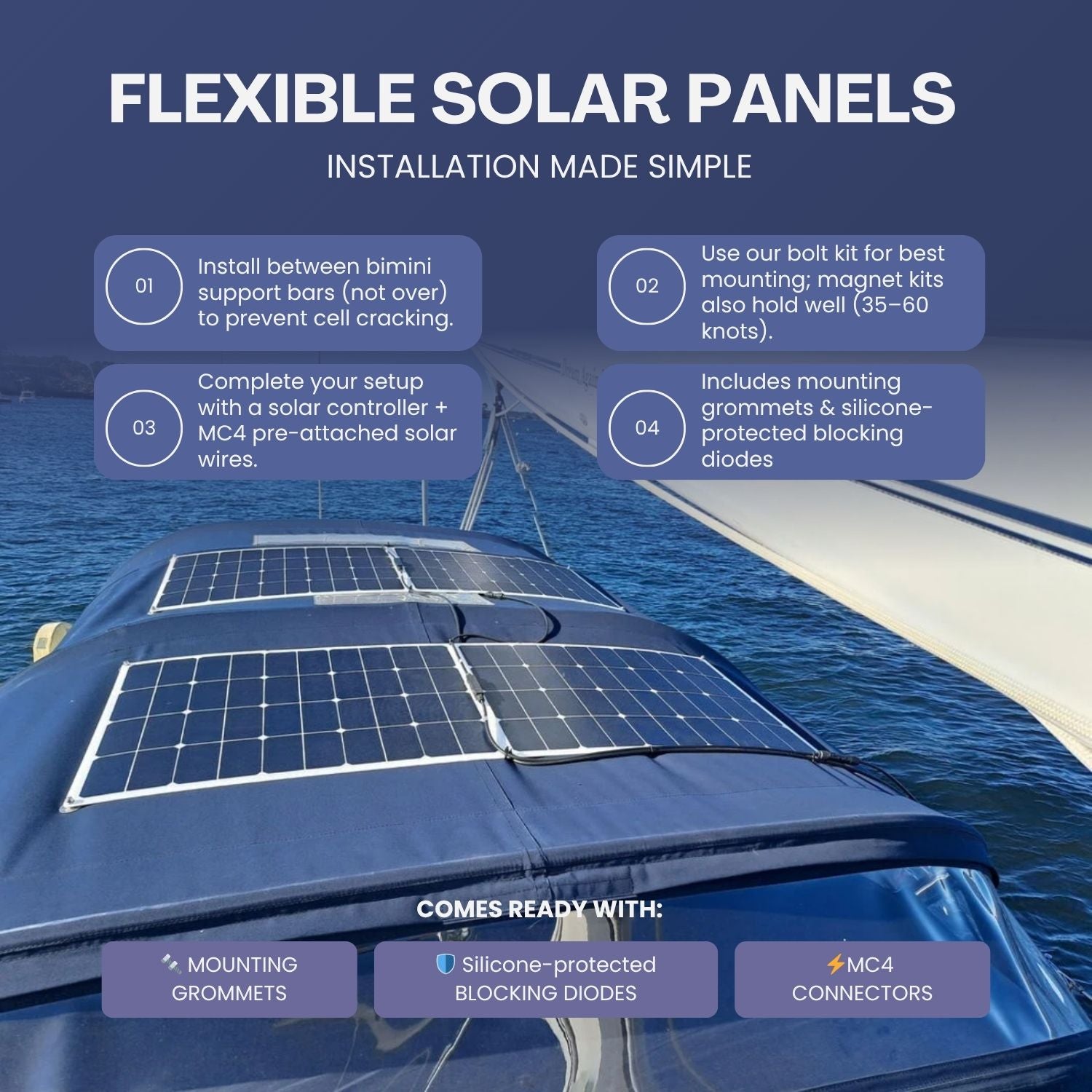

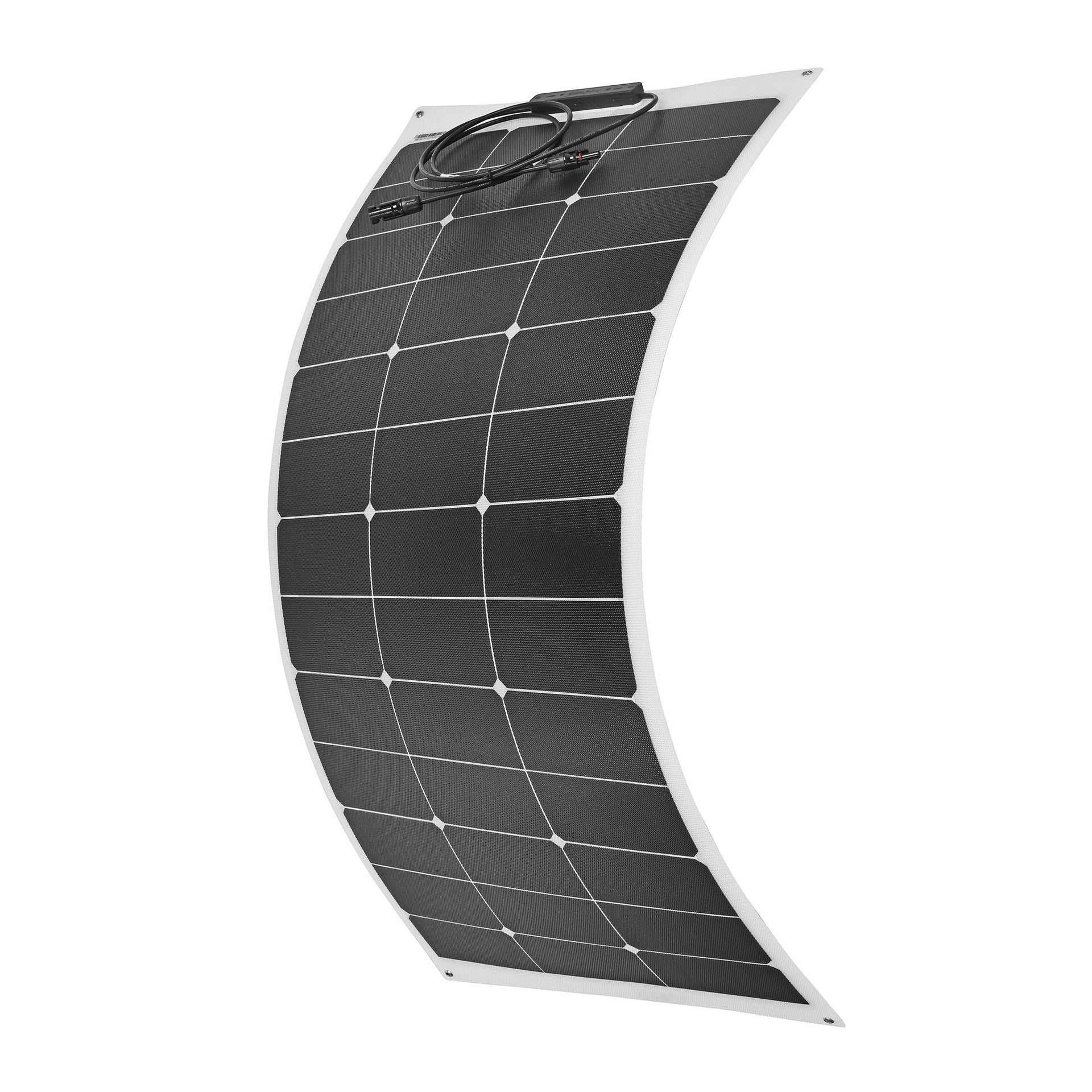

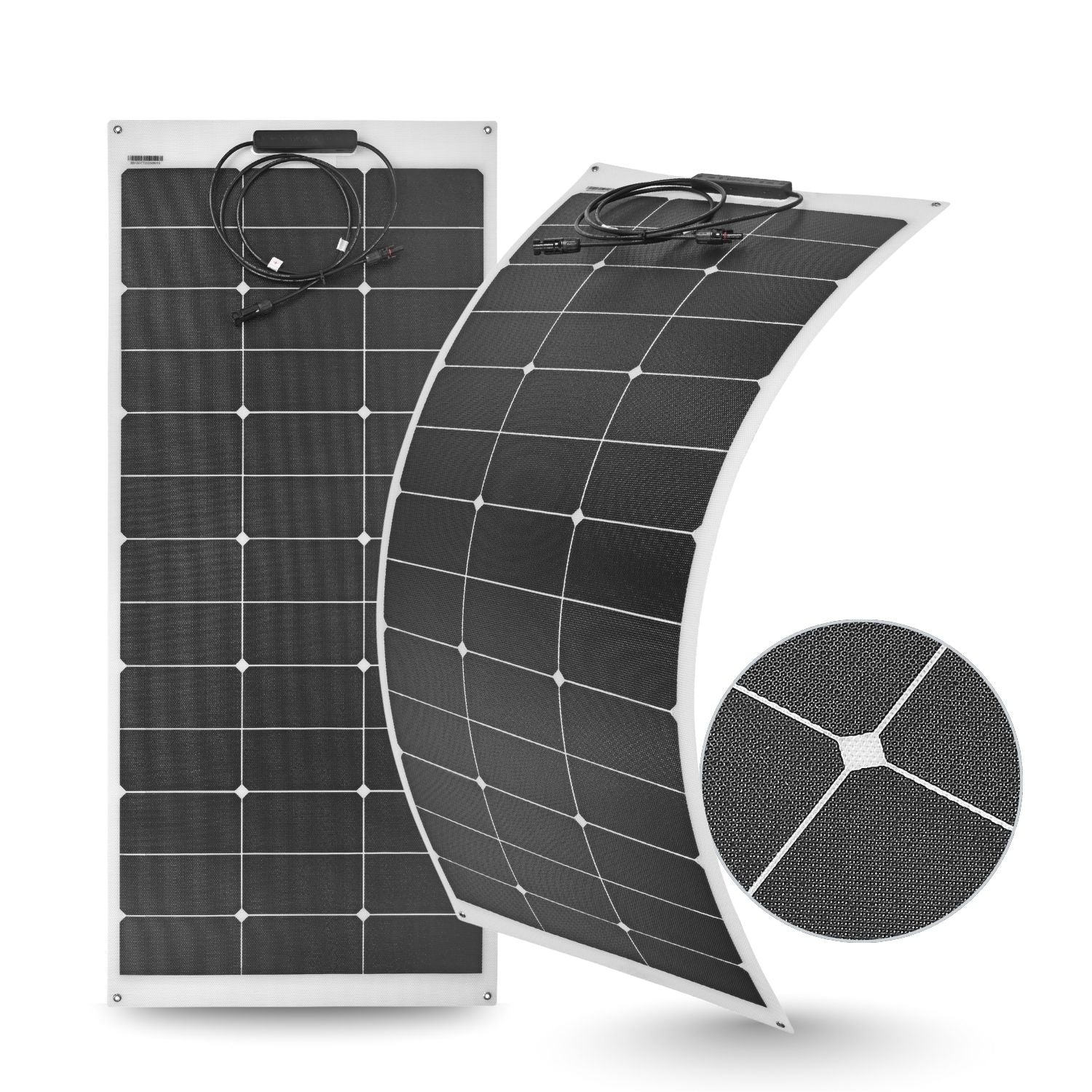

These 130 Watt Shade Tolerant Semi-flexible Marine Solar Panels are ideal for mounting on a bimini top or a curved deck surface. Mounting grommets, MC4 connectors and blocking diodes are included.

Specifications:

  • Model: CMP23130F-ST
  • Rated Power: 130 Watts
  • Peak Power Voltage (Vmpp): 22.0 Volts
  • Peak Power Amps (Impp): 5.9 Amps
  • Open Circuit Voltage (Voc): 25.0 Volts
  • Short Circuit Current (Isc): 6.3 Amps
  • Cell Conversion Efficiency: 24.4%

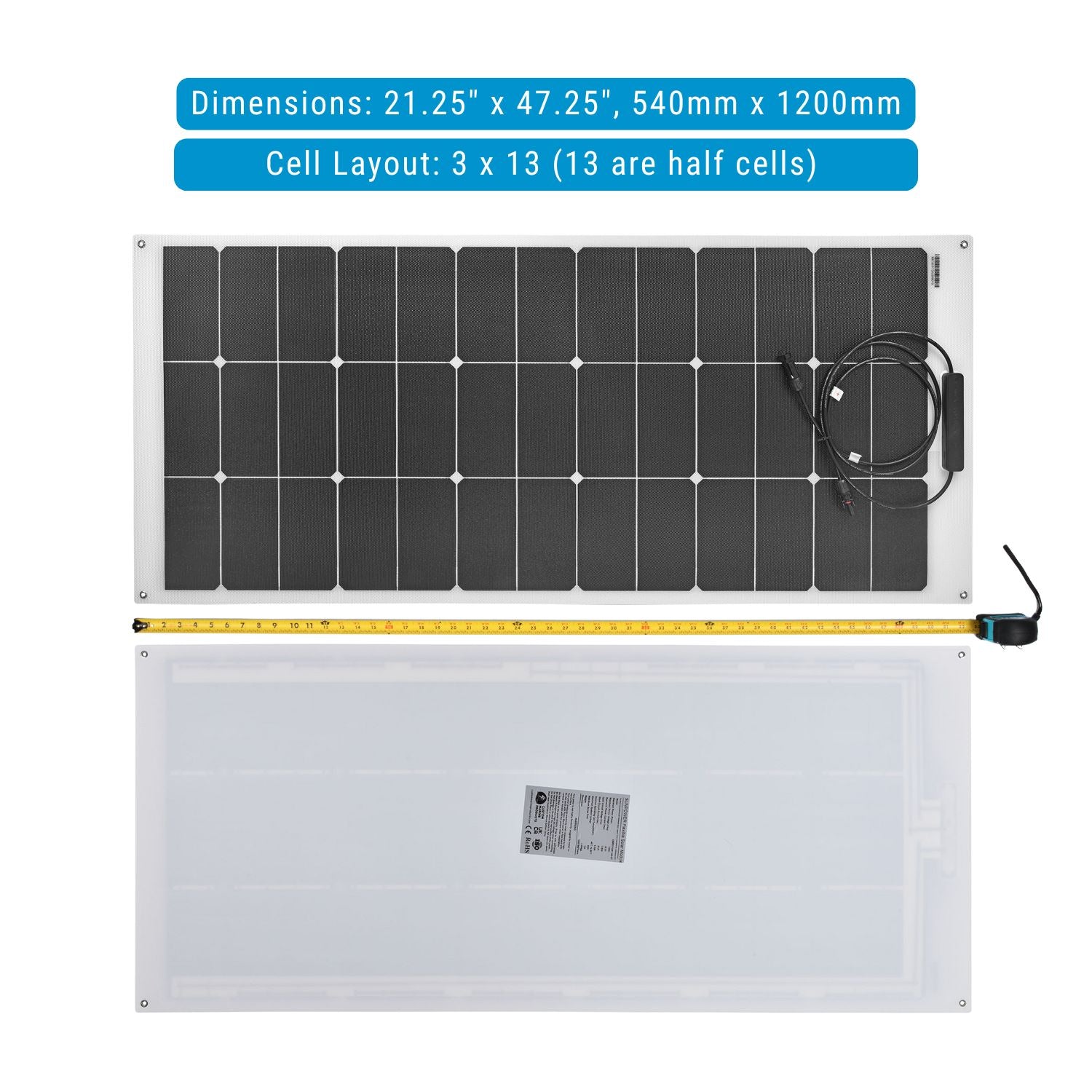

  • Dimensions: 21.25" x 47.25", 540mm x 1200mm
  • Weight: 6.4 lbs, 2.9 kg

Not Sure How Many Solar Panels You Need?

Try our Power Consumption Worksheet.

Make a copy of the worksheet and update with your information.

Customer Reviews - ⭐⭐⭐⭐⭐

Read Our Customer Reviews and Testimonials

Wiring Diagrams

View PDF

See All Solar Panel Specifications

Marine Solar Panel Grid - Sunpower A+ Grade Efficient Cells

Marine Solar Panel Grid - HJT and PERC Cells

View full details

Our New 4 Quadrant Design

The diagram along side illustrates how these amazing panels work. Instead of the normal 2 quadrant design we use a new split cell design allowing the panel to have four quadrants of solar cells linked in series and isolated with inner panel blocking diodes. If one or two quadrants are shaded, the other quadrants perform at normal output. This can increase shaded panel output by 3 times that of a standard shaded panel.

Shop Our Most Popular

SunPower Maxeon Shade Tolerant Series

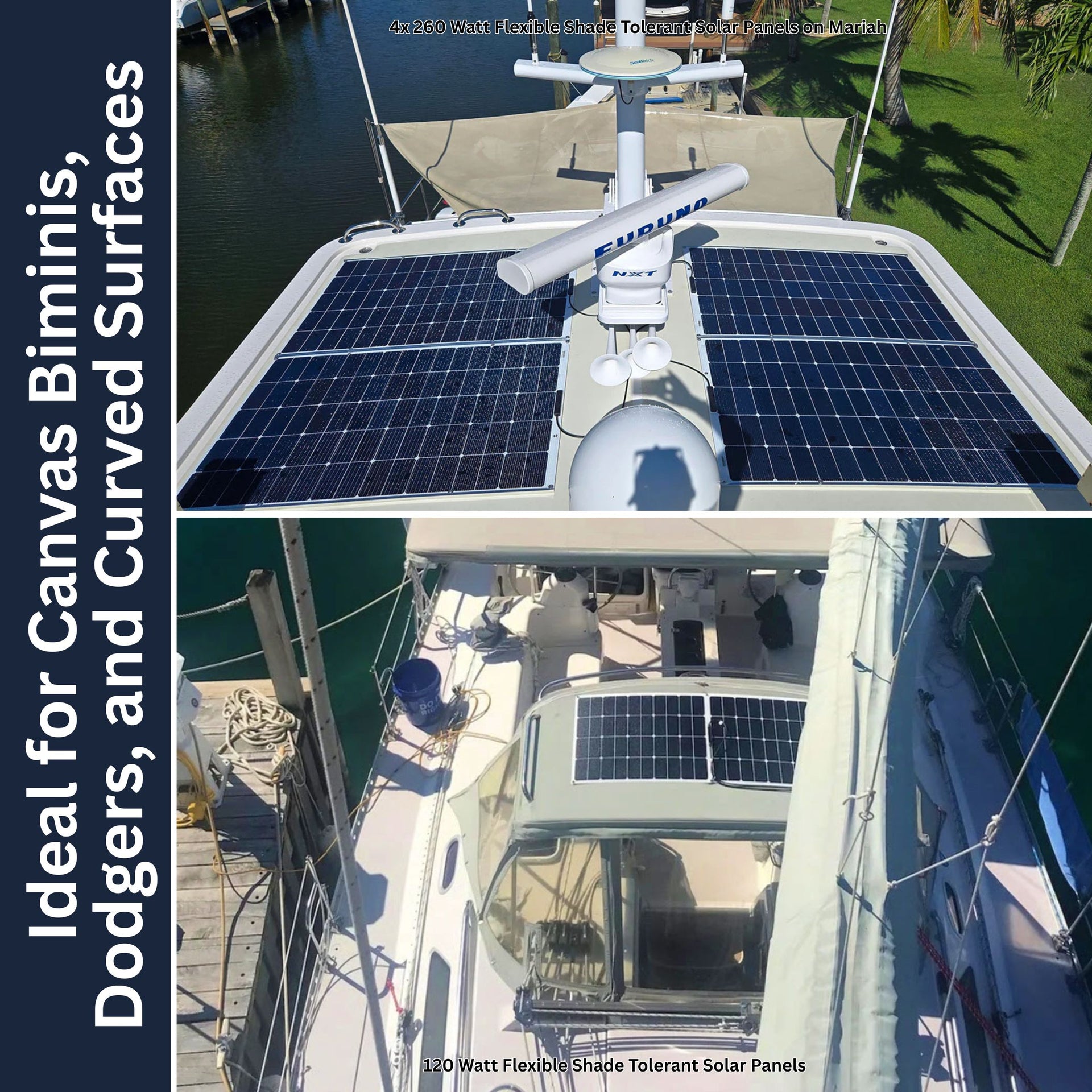

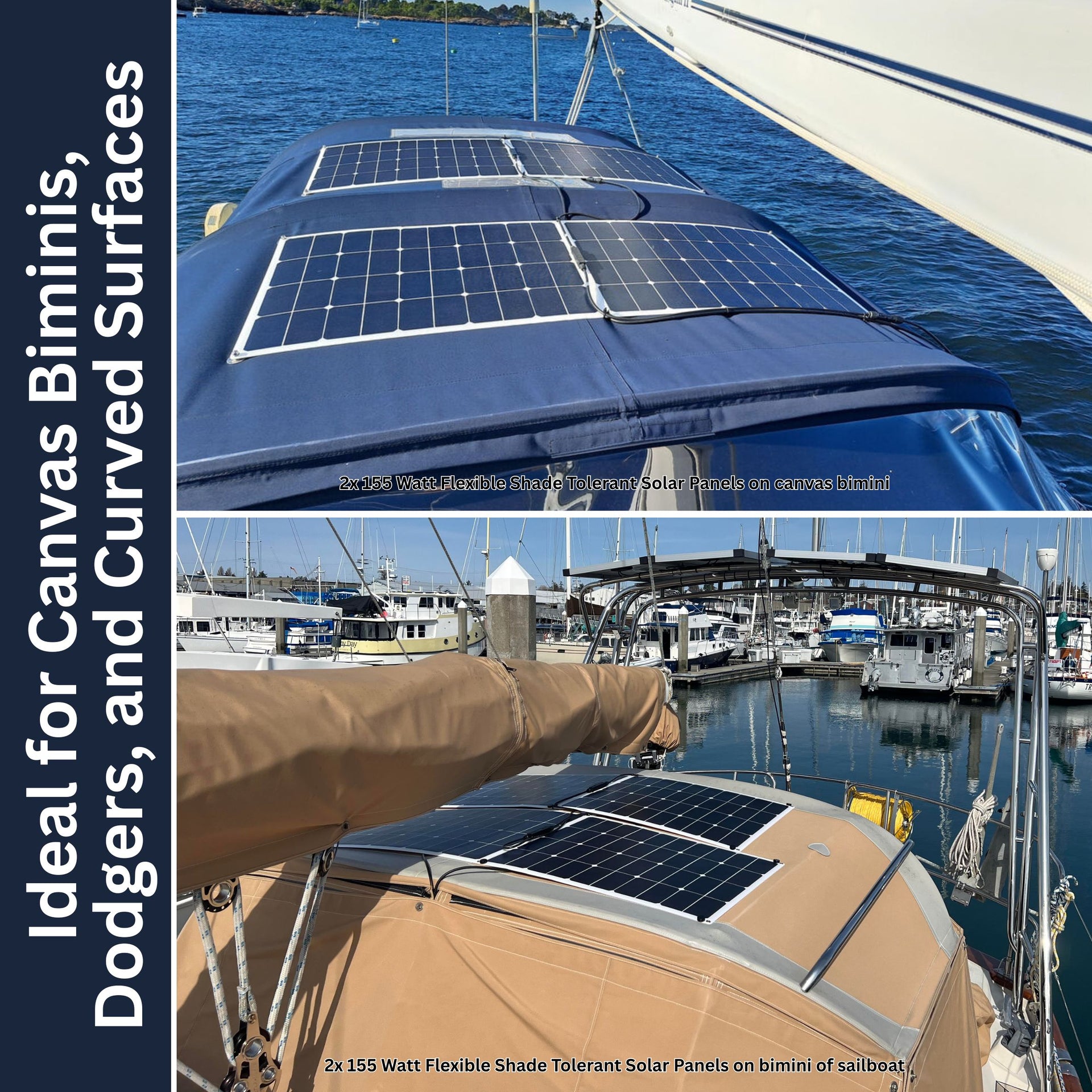

Solar panel shading is a major issue on many boats.  Shading can reduce a standard panel performance by over 60%.  Custom Marine Products has developed a series of semi-flexible shade tolerant solar panels that have superior performance when partially shaded by boat equipment or nearby objects.  These solar panels have high performance SunPower Maxeon cells.  The diagram to the left illustrates how these amazing panels work.The junction box is mounted in the center or the edge of the panel enabling the panel to have four quadrants of solar cells linked in series and isolated with diodes.  If one or two quadrants are shaded, the other quadrants perform at normal output.  The result is a panel that will provide up to three times the output of a standard panel when shaded.  These shade tolerant panels are ideal for bimini and dodger mounting where there is boom, mast and instrument pole shading.  Patent pending
Button label

What Makes Our Panels Superior

  • Our Semi Flexible Shade Tolerant Panels use only SunPower Maxeon A+ Cells.
  • The SunPower cells we use in these panels are 24.4% efficient.
  • We use an ETFE laminate coating that won't delaminate or go milky for 10 years.
  • The ETFE laminate is applied with a prismatic finish to direct sun energy into the cells.
  • Panels use internal blocking diodes to isolate the quadrants unaffected by shading.

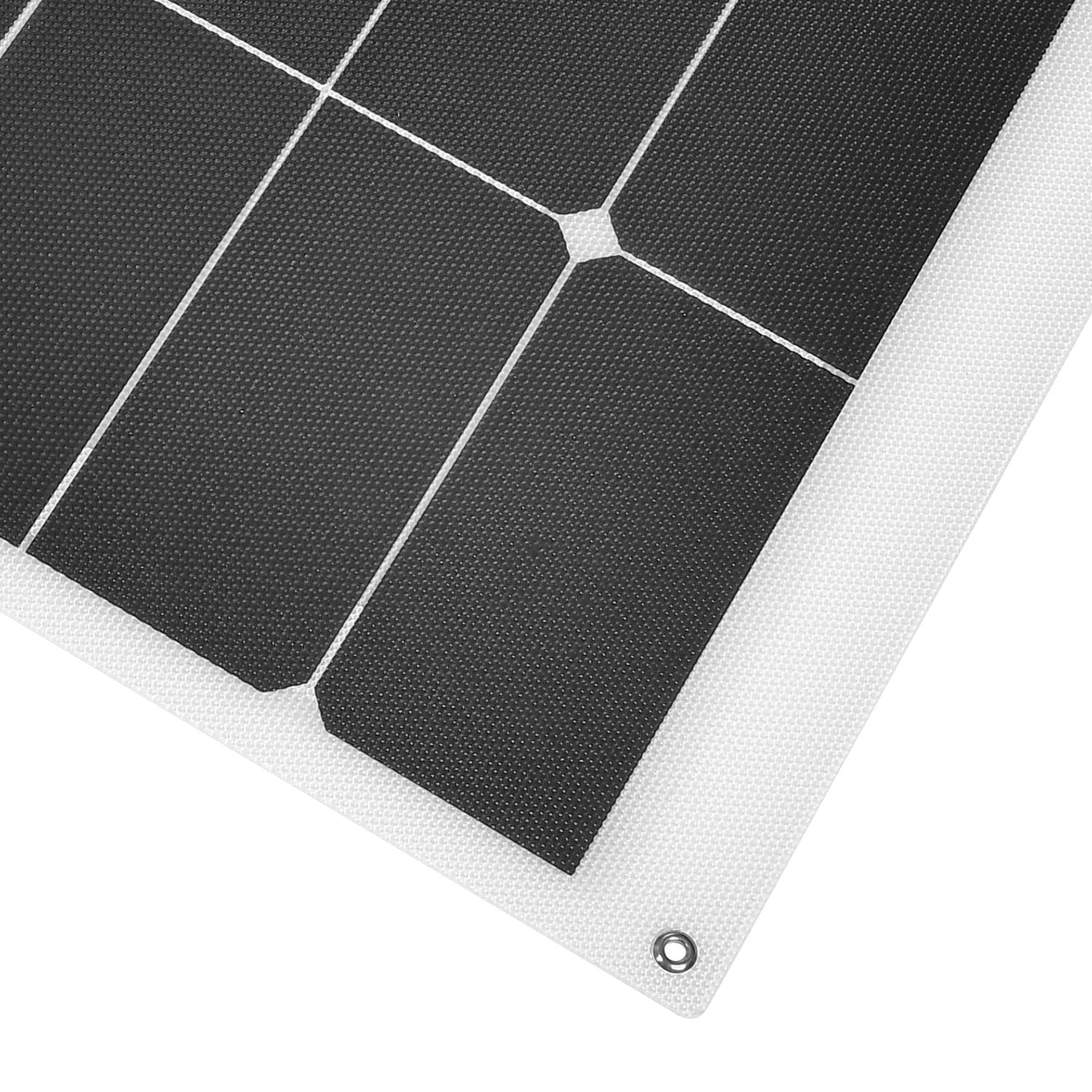

  • We build 6 grommets into the panels edges for easy installation with our mounting kits.

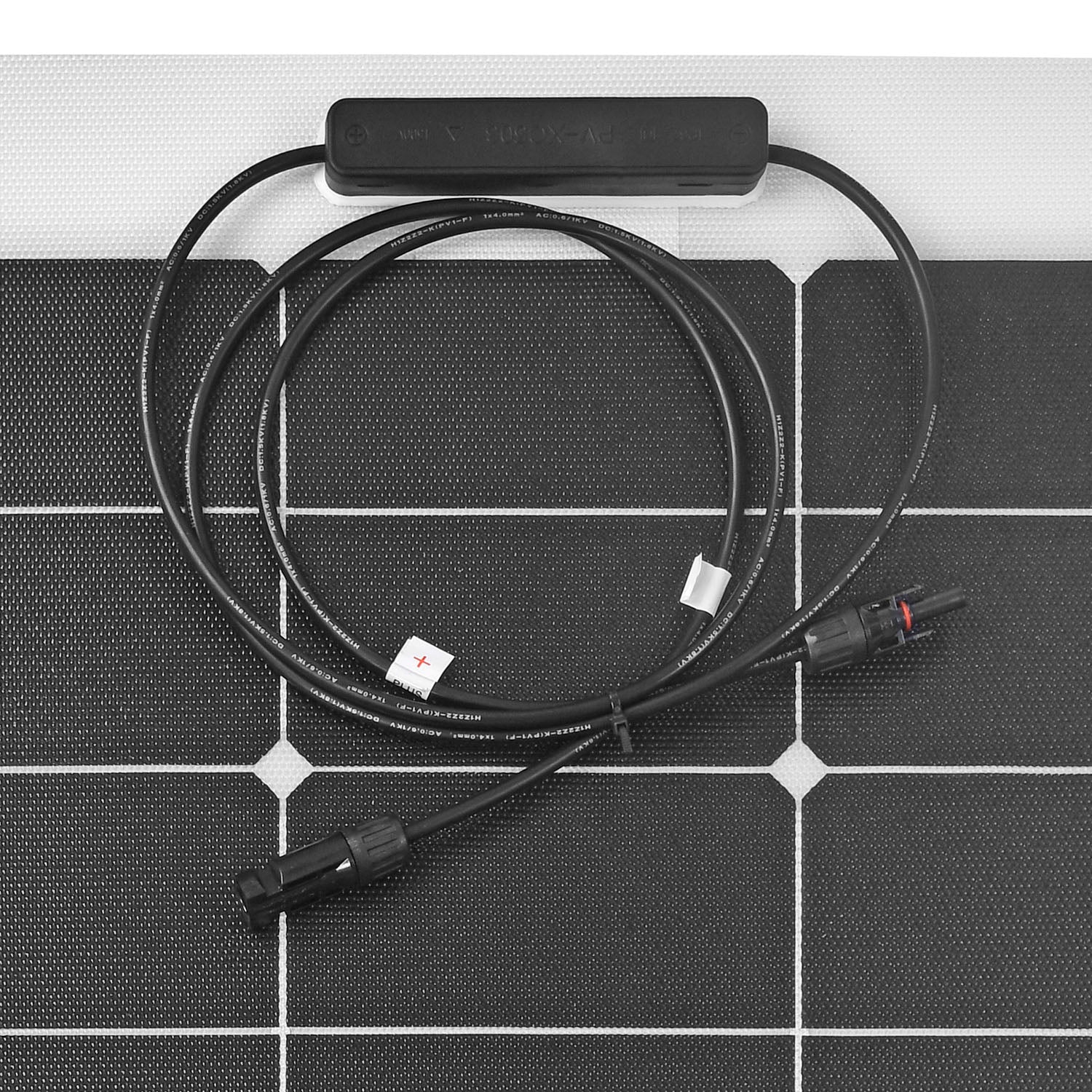

  • All panels come with 3 foot pigtails and MC4 connectors.
  • Our junction boxes are filled with Non Gassing Silicon RTV for maximum electrical waterproof insulation and corrosion resistance.

Premium Marine Solar Panels/Systems and Lithium Iron Batteries

Improve your cruising experience with the highest efficiency solar panels available.

  • Shipping

    Products ship day after payment domestically. Free shipping on orders over $1000 applies to Lower 48 US states only. International takes longer. We do not add tariff charges. Call for pricing.

  • Custom Designs

    Our engineers will work with you to design a solar system specific to your needs including Lithium Batteries if you like. (Batteries are 10% off w/ solar system purchase).
