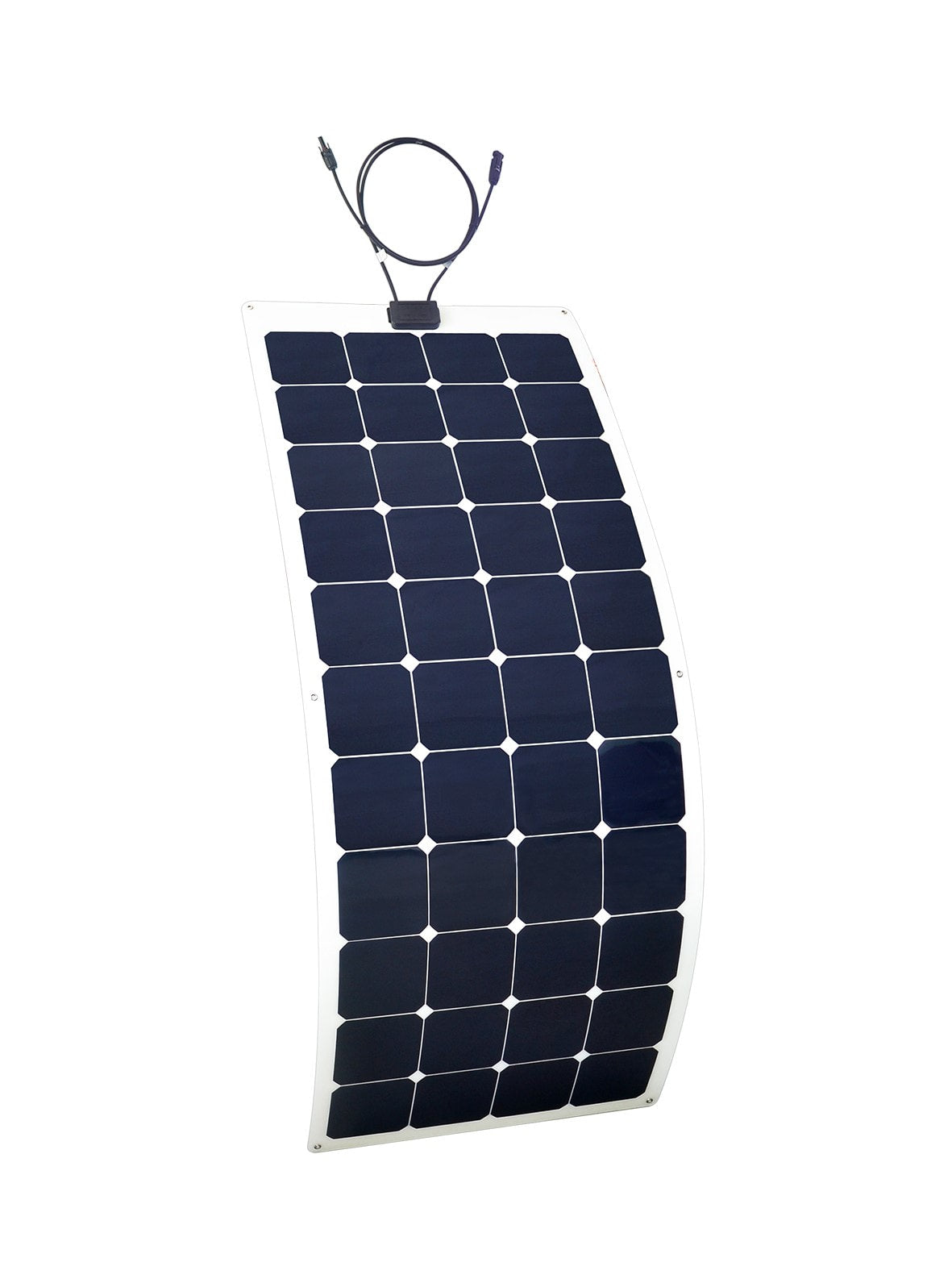

145 Watt Flexible Marine Solar Panel

145 Watt Flexible Marine Solar Panel

Regular price $789.00 USD
Regular price Sale price $789.00 USD
Sale Sold out
Shipping calculated at checkout.

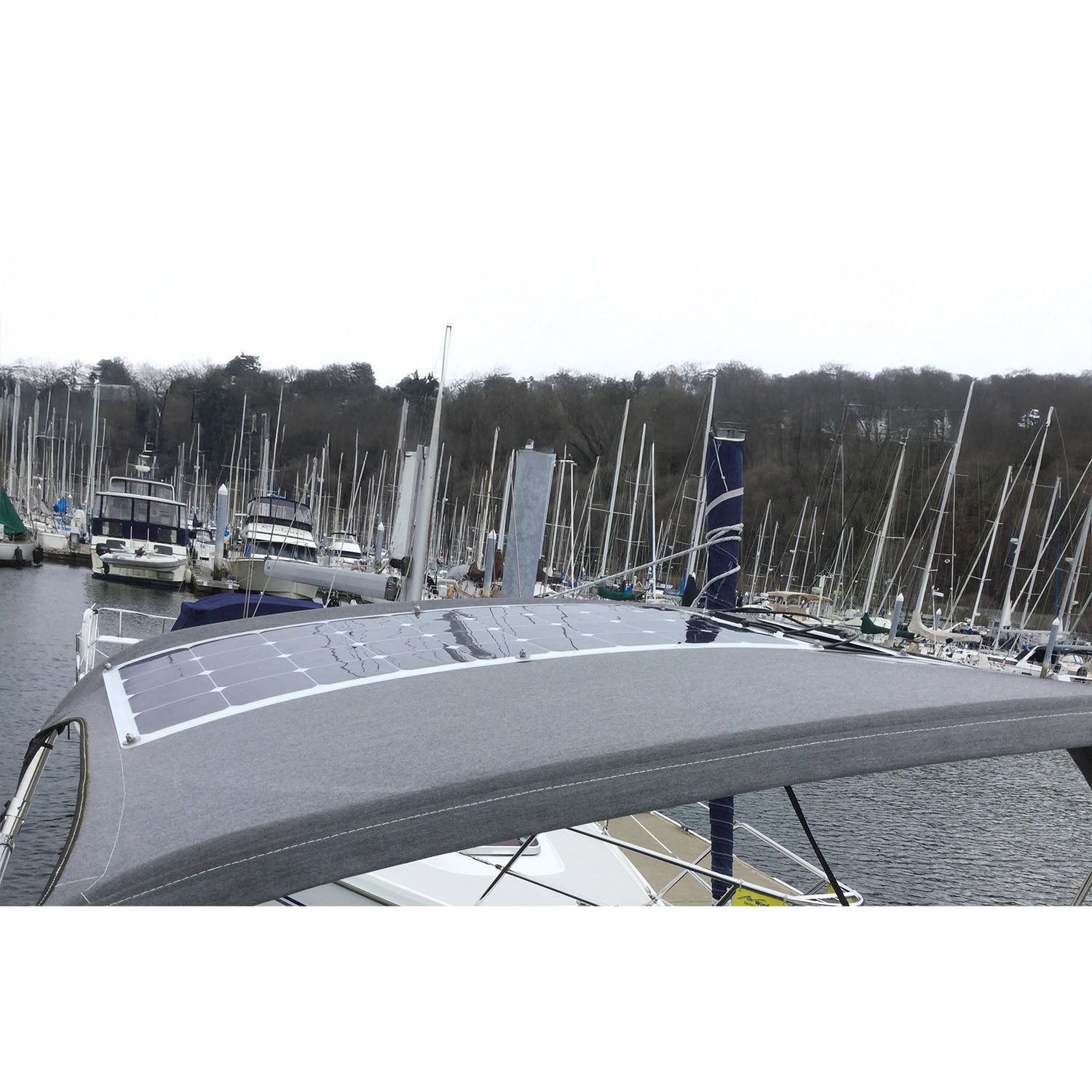

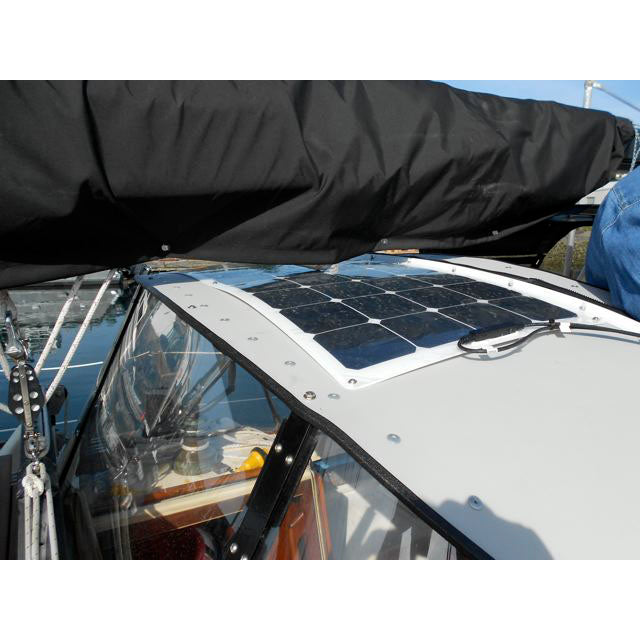

These 145 Watt Flexible Marine Solar Panels use 24.4% efficient SunPower solar cells. They are ideal for mounting on a bimini top or a curved deck surface. Mounting grommets, MC4 connectors and blocking diodes are included.

Specifications:

  • Model: CMP23145F-145
  • Rated Power: 145 Watts
  • Peak Power Voltage (Vmpp): 24.5 Volts
  • Peak Power Amps (Impp): 5.9 Amps
  • Open Circuit Voltage (Voc): 28.9 Volts
  • Short Circuit Current (Isc): 6.3 Amps
  • Cell Conversion Efficiency: 24.4%
  • Dimensions: 21.25" x 52.4", 540mm x 1330mm
  • Weight: 6.6 lbs, 3 kgs

Not Sure How Many Solar Panels You Need?

Try our Power Consumption Worksheet.

Make a copy of the worksheet and update with your information.

Wiring Diagrams

See All Solar Panel Specifications
