420 Watt Rigid Solar Panel - HJT Cells
This model is SOLD OUT, click here for our newest Rigid Marine Solar Panels:
- 425 Watt Bifacial Rigid Solar Panel - BC Cells 27.4% Efficient with Clear Backing
- 550 Watt Bifacial Rigid Solar Panel - BC Cells 27.4% Efficient with Clear Backing
Due to the size of this panel, shipping is not free. A $100 shipping credit is applied, you only pay the remaining shipping cost at checkout.

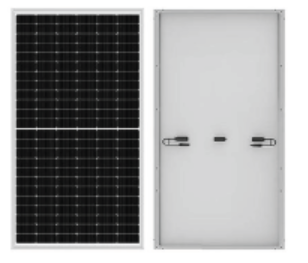

This 420 Watt Rigid monocrystalline solar panel uses premium HJT solar cells and will perform extremely well in both full and partial sun. It is built to withstand the harsh marine environment and is ideal for deck, arch and dinghy davit mounting in a 12 volt system.
✅ A+ Grade 24.1% efficient solar cells - That is 134% more efficient compared to other 18%-19% standard home panels. Great if you are space constrained.
✅ We are selling more power per square foot than regular residential solar panels
✅ Tiny Home Max Power Per Sq Ft Solar Panels
Ships Next Day UPS Ground from Denver or Michigan.
Specifications
- Model: CMP27420H
- Rated Power: 420 Watts
- Peak Power Voltage (Vmpp): 46.1 Volts
- Peak Power Amps (Impp): 9.1 Amps
- Open Circuit Voltage (Voc): 54.37 Volts
- Short Circuit Current (Isc): 9.7 Amps
- Cell Conversion Efficiency: 24.0%
- Dimensions: 39" x 77", 1955mm x 992mm
- Weight: 50.7 lbs, 23 kgs
- Background Color: White

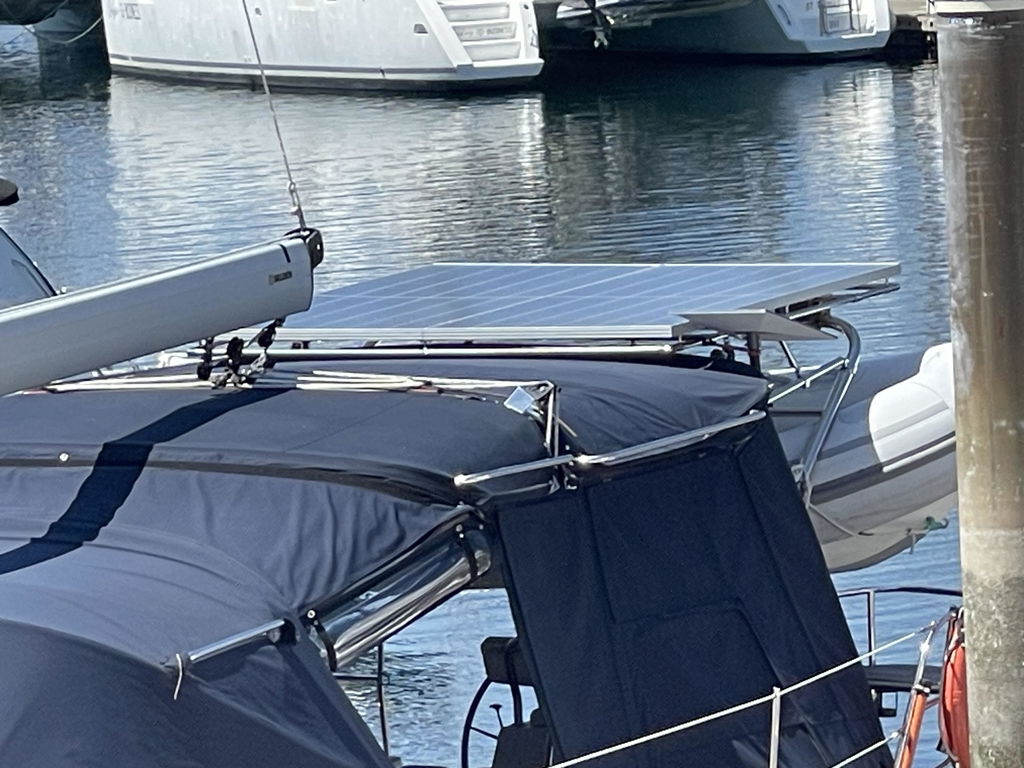

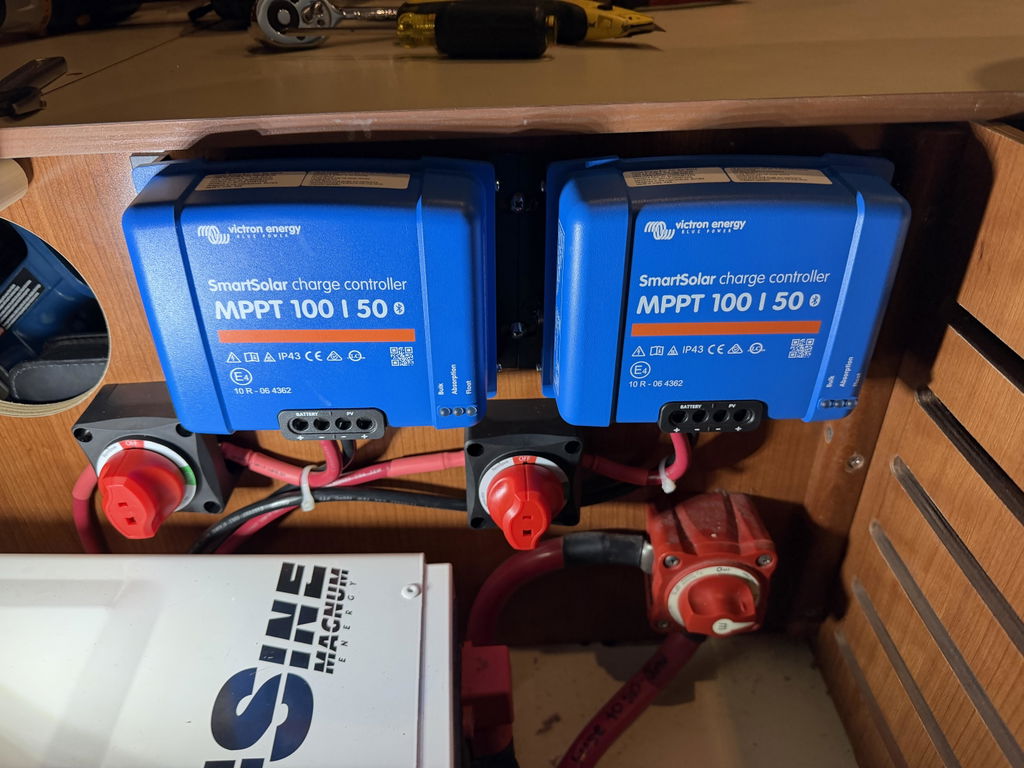

Harrison and the team were great in helping put together an appropriate set of solar gear for our install. Post install, everything is working great and we are SO happy to watch the amps pouring in. :-) Thanks all!
I highly recommend it
Working well, easy to install lightweight
