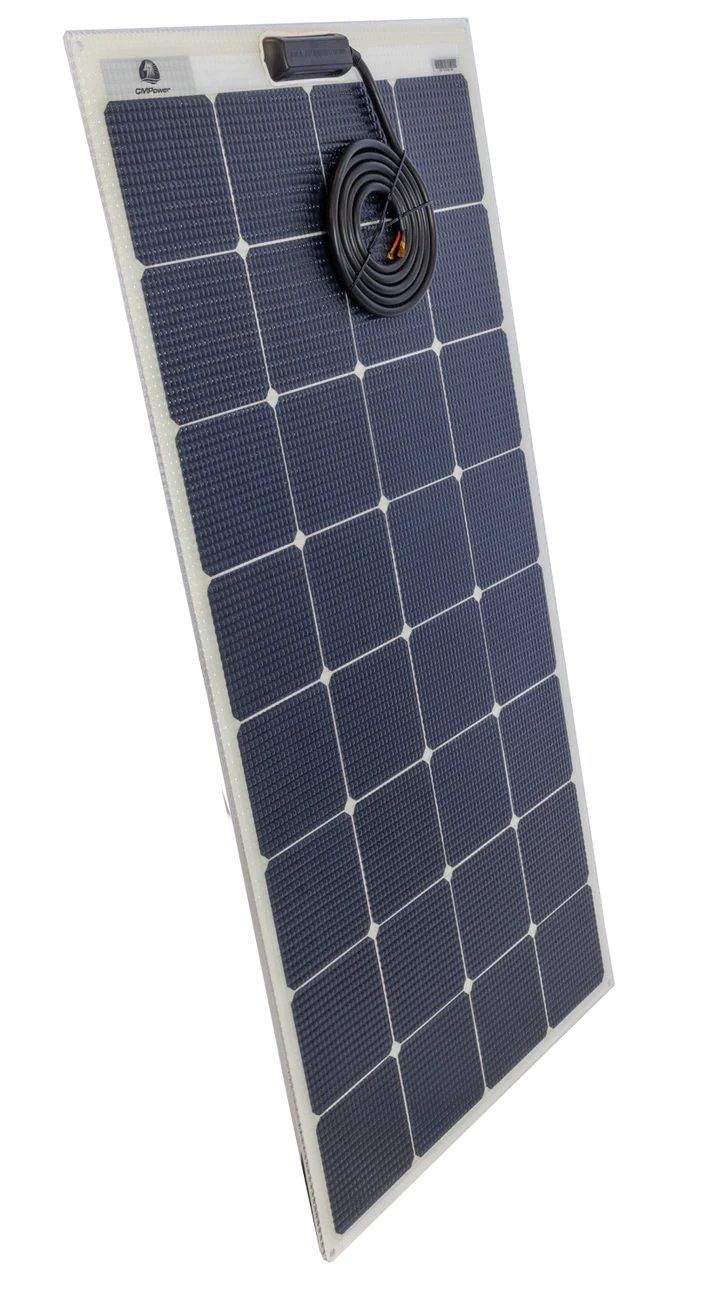

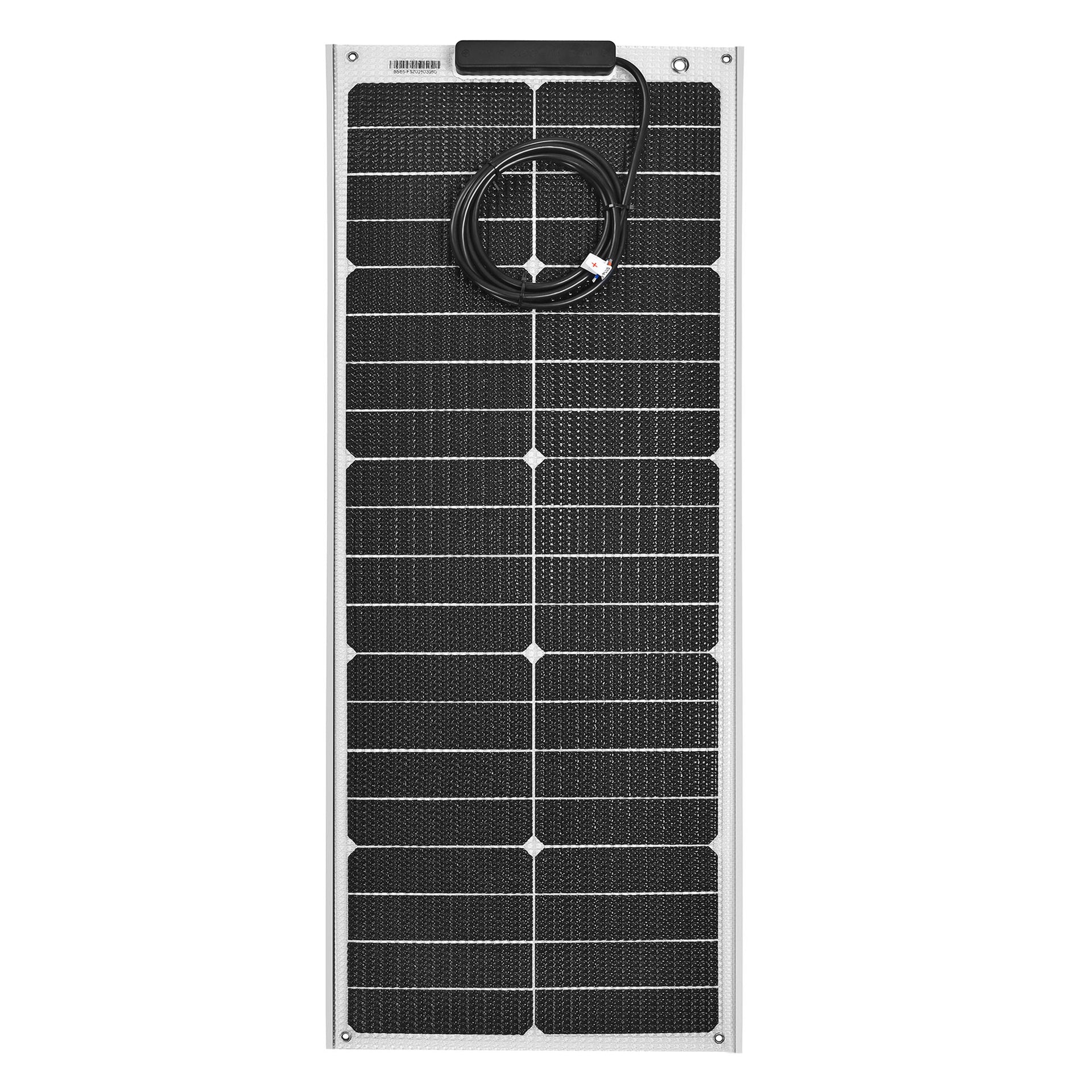

65 Watt Walkable Semi-Rigid Solar Panel - Carbon Fiber Series with Polycarbonate & J-Mount Brackets - Sunpower A+ Grade 24.4% Efficient Cells
Built for Marine Decks, Vans & Harsh Environments
This 65W walkable semi-rigid solar panel features SunPower A+ Grade cells with 24.4% efficiency, excellent for van roofs and boat decks.
Designed for marine and mobile applications, the panel includes a carbon fiber backing plate for superior rigidity and sturdiness while still allowing slight bending.
A thick ETFE protective laminate shields the high-efficiency cells from UV exposure, salt spray, and heavy foot traffic - making it ideal for boat decks and van roofs installations. 6 foot long #10 duplex cable included.
✅ The semi-rigid (walk-on) solar panel kit includes:
- PV solar panel module
- Sheet of twin wall polycarbonate backing
- Two J channel mounting extrusions
- Owner’s Manual
📦 Ships Next Day UPS Ground from Denver or Michigan.
🔹 Key Features
- 65W high-efficiency output

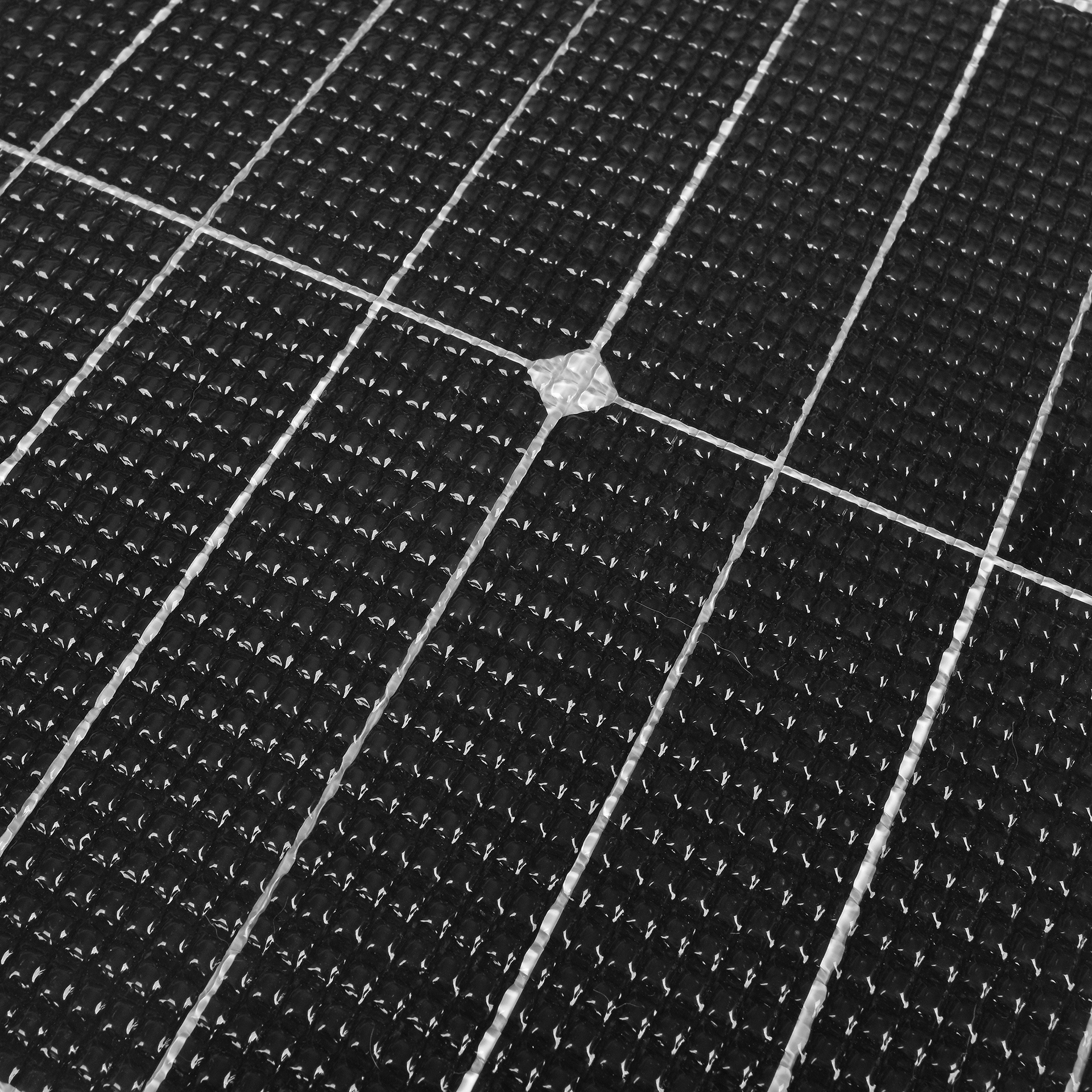

- SunPower A+ Grade cells – 24.4% efficiency
- Walkable surface design

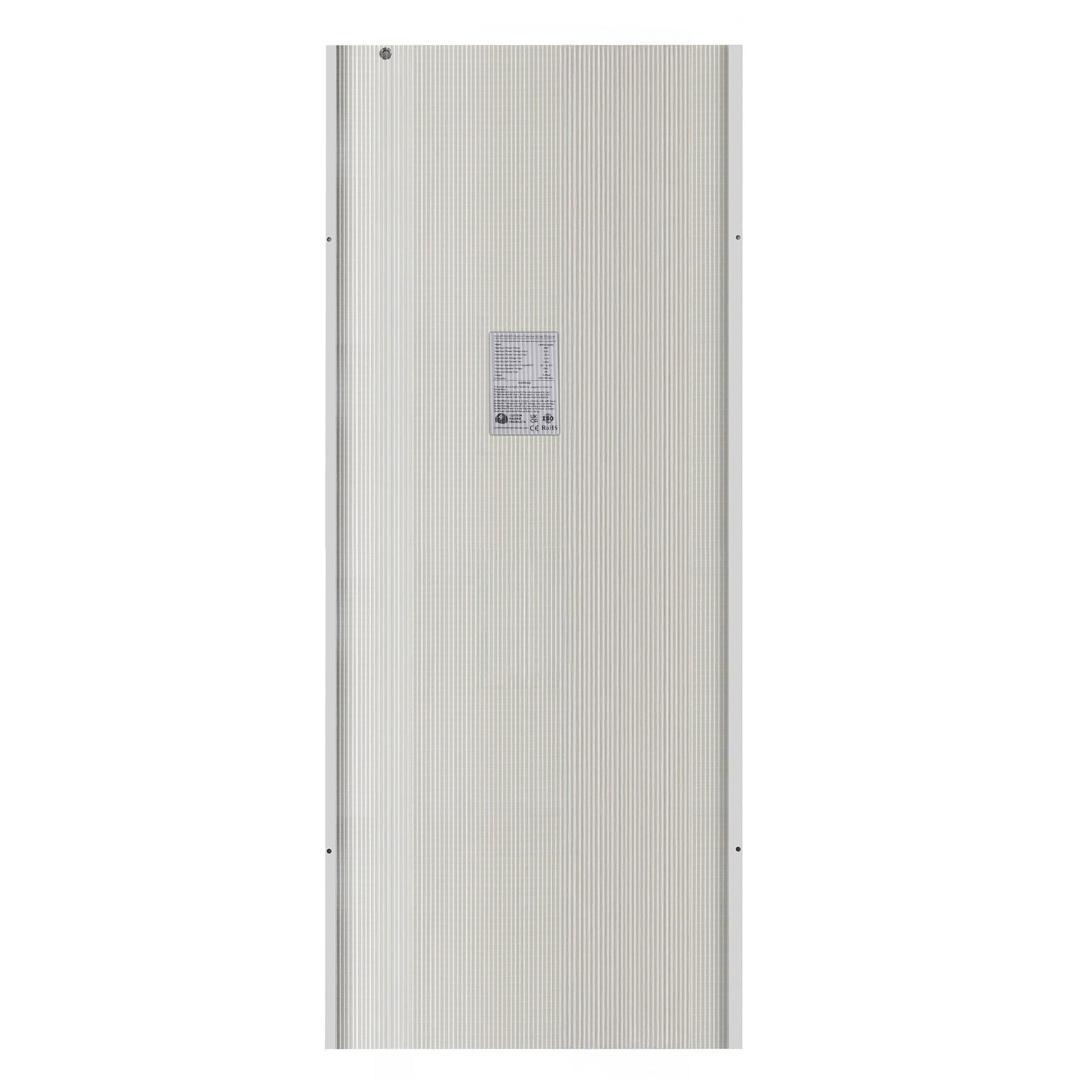

- Carbon fiber backing for added rigidity
- Thick ETFE laminate protection

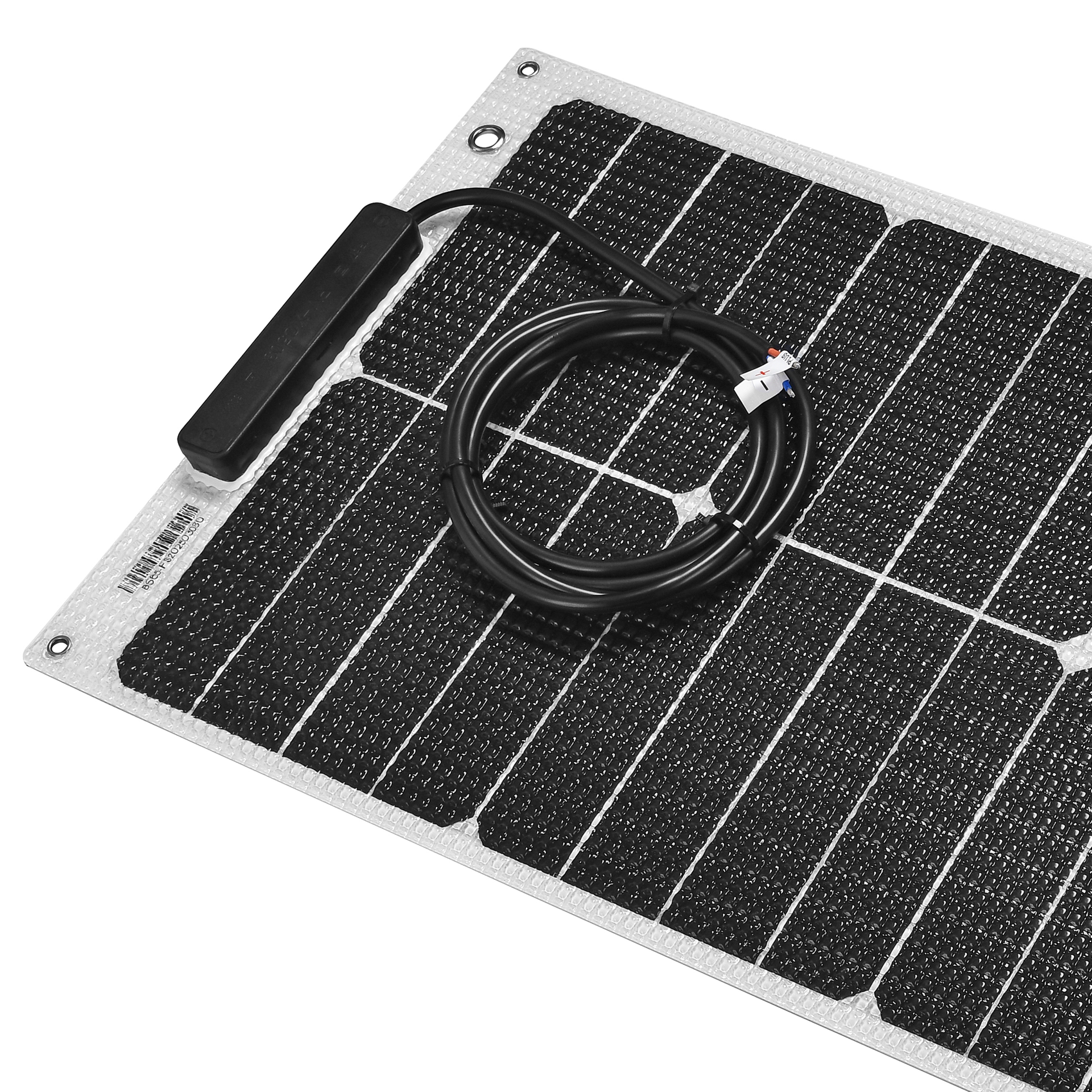

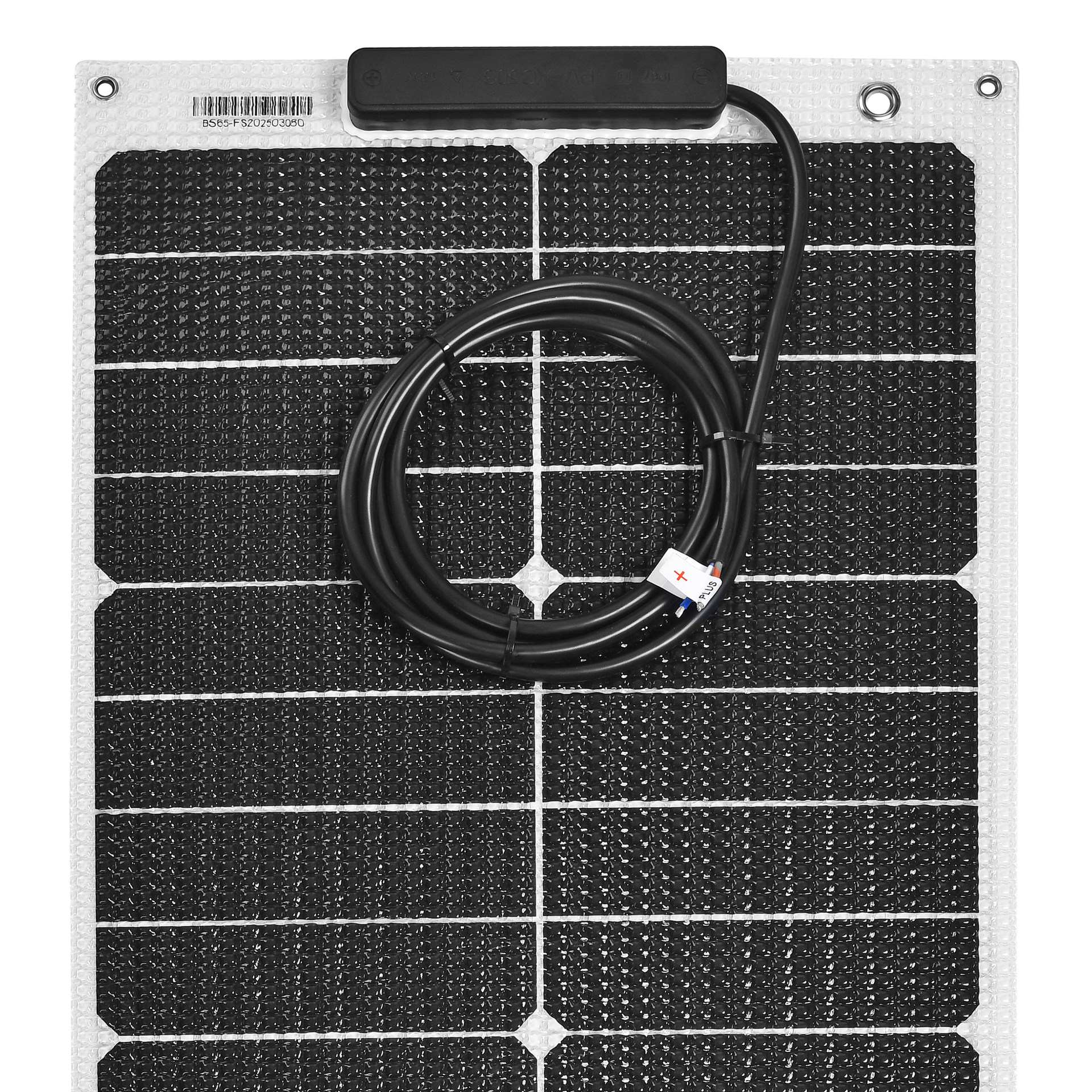

- Pre-installed 6 ft #10 duplex marine cable

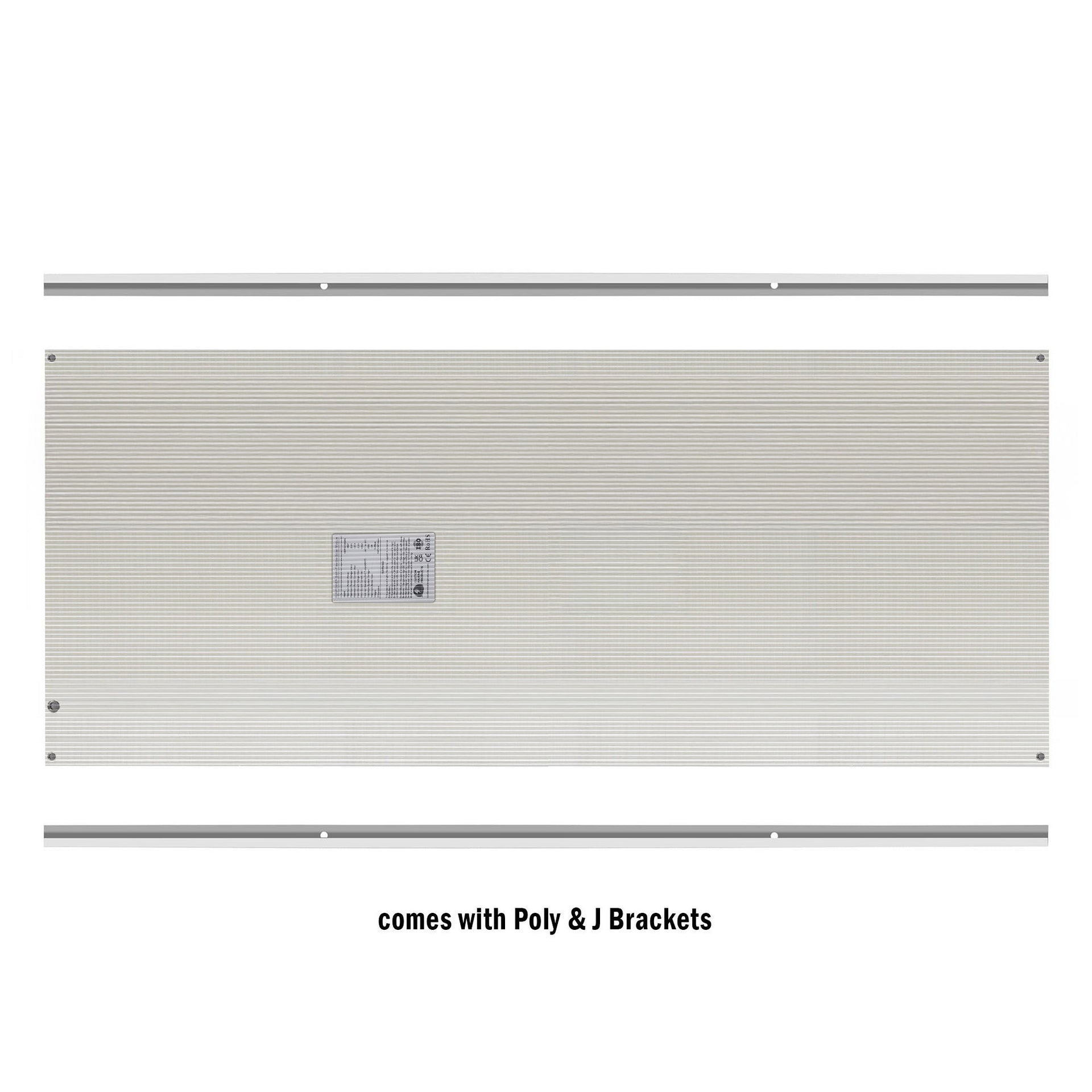

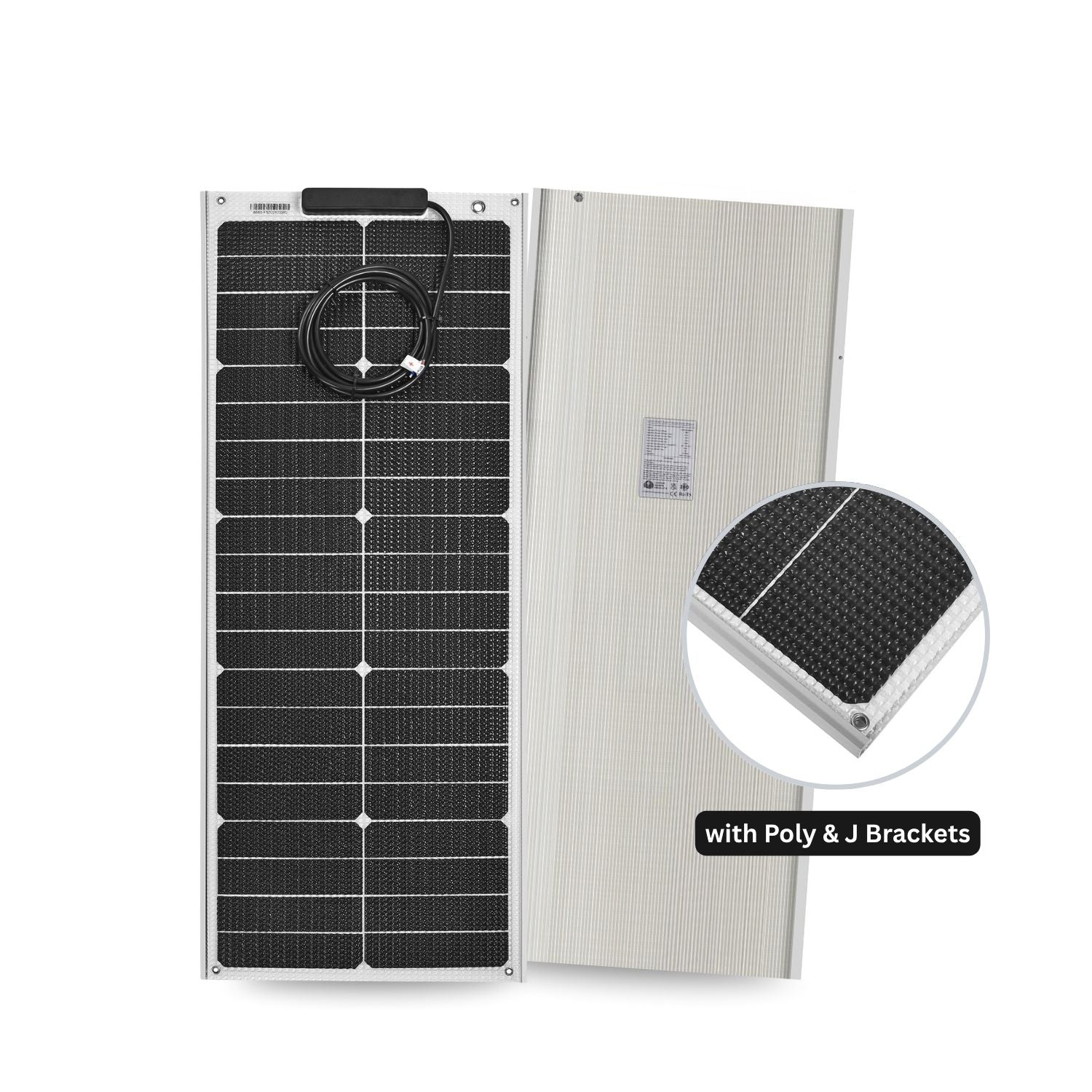

- Includes Poly and J brackets for secure setup.
- Ideal for boats, vans, and off-grid systems
🔹 Specifications
| 65 Watt Walkable Semi-Rigid Solar Panel - Carbon Fiber Series | |
|---|---|
| 🔧 Model | CMP24065SRXCP |
| ⚡ Rated Power |
65 Watts |
| 🔋 Peak Power Voltage (Vmpp) | 23.0 Volts |
| 🔋 Peak Power Amps (Impp) | 2.8 Amps |
| ⚡ Open Circuit Voltage (Voc) | 27.6 Volts |
| ⚡ Short Circuit Current (Isc) | 3.1 Amps |
| 🌞 Cell Conversion Efficiency | 24.4% |
| 📏 Dimensions | 14.2" x 36.2", 360 x 920 x 4 mm |
| ⚖️ Weight |
4.6 lbs, 2.1 kgs |
| 🧱 Substrate | Carbon Fiber Backing |
| 🔲 Background Color | White |
| 🧩 Cell Layout | 2 x 20 (20 are half cells) |
| 🛡️ Warranty | 5 years |
🎥 Carbon Fiber vs Fiberglass Solar Panels
❓ What’s the difference between carbon fiber and fiberglass walk-on solar panels?
In this video, Tom Trimmer from Custom Marine Products compares our 100W carbon fiber-backed and fiberglass-backed semi-rigid solar panels — including stiffness, weight, heat dissipation, cost, and mounting options.
Both panels use high-efficiency 24.4% SunPower Maxeon solar cells and are walkable. The key difference? The backing material.
